Hydraulic Hose Selection Guide: SAE 100R vs EN 856

SAE J517 provides dimensional and performance specifications for hydraulic hose, including the 100R series. EN 856 addresses rubber-covered, spiral-wire-reinforced hydraulic hoses and assemblies. These are families of requirements, rather than one universal pressure class. Write down the complete designation and the standard edition required by your purchasing specification.

Do not treat every SAE 100R hose as spiral hose. Familiar 100R1 and 100R2 products use wire-braid construction, while other 100R types use different reinforcement. EN 856 includes types such as 4SP and 4SH. The labels describe different constructions and performance requirements; their names alone do not prove that two products can replace one another.

A supplier may list more than one standard for a particular hose. That statement belongs to the identified product and size. It is not a general equivalence table for every hose carrying either designation. Compare the current product data and the equipment requirement before accepting an alternative.

Begin with the equipment model, machine identification and circuit function. A boom line, pilot line, return line and suction line have different duties. Record the existing reference and any modifications. Treat an old sample as identification evidence, especially if its markings are worn or its installation has changed.

• Size: establish the required bore and flow duty; outside diameter alone does not identify bore.
• Temperature: consider fluid temperature, surrounding air and nearby hot components separately.
• Fluid: identify the actual hydraulic fluid and check tube and seal compatibility.
• Pressure: include relevant peaks and pulsation, rather than relying only on a dashboard reading.
• Movement: describe articulation, bending space, vibration and the route through the machine.

Compare working pressure, fluid compatibility, temperature limits, minimum bend radius, outside diameter and permitted couplings for the proposed size. A stronger-looking reinforcement does not solve every routing problem. A larger outside diameter or different flexibility can prevent a replacement from fitting existing clamps or moving through its intended envelope.

Keep the comparison traceable. Record the product code, catalogue revision and the operating conditions used for selection. If a candidate has a pressure figure without units, a missing temperature qualification or an unclear coupling family, request clarification. Purchasing should not turn an incomplete catalogue line into an assumed engineering decision.

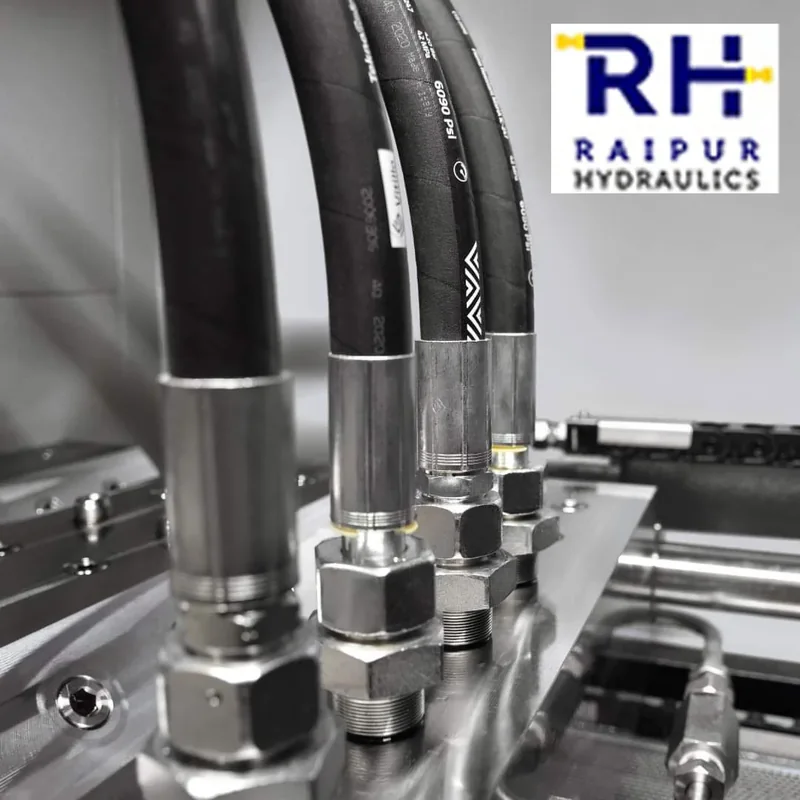

The machine-end connection and the hose-retention interface are separate checks. Matching the thread at the machine does not demonstrate that a stem and ferrule suit the hose. Use the combination and assembly instructions specified for the selected system, including preparation, insertion and crimp requirements.

For a replacement programme, group enquiries by circuit and accepted assembly reference. Send dimensions and technical details privately for review. This helps the workshop quote the required configuration without publishing a machine's complete hose schedule or relying on a model name as a substitute for specifications.

Provide quantities, delivery destination, required identification and the agreed inspection scope alongside the technical requirement. Flag uncertain details instead of filling them with a guess. For repeat purchases, identify changes from the previous order explicitly so that a revised route or fluid does not get lost in a copied part description.

Before release, have the responsible engineering team confirm the candidate against the application. Keep that decision with the maintenance record. The value of a selection guide is a better documented choice, not an automatic substitution based on two similar standard labels.
