GATES CATALOGUE REFERENCE

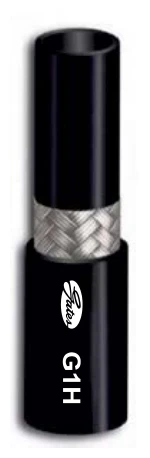

Gates 46560126 — 4 G1H (Pricked Cover) hydraulic hose
Current Gates Catalogue: February 2024.
Part number 46560126
Also searched as: 46560126
Part-number identification artwork · configuration confirmed on quotation.
Identification
| Reference: | 46560126 |
|---|---|
| Product type: | Hydraulic Hose |
| Lead time: | Estimated delivery: 4–6 days; final date confirmed on quotation |
RHPL confirms hose construction, size, length, connections, protection and fitment against your reference, drawing or sample before manufacture.
Technical information
| Inside diameter (catalogue size): | 6.7 mm · 0.25 in |
|---|---|
| Outside diameter: | 13.5 mm |
| Working pressure: | 190 bar · 2,750 psi |
| Burst pressure: | 760 bar · 11,000 psi |
| Minimum bend radius: | 101.6 mm · 4 in |
| Temperature range: | -40 °C to +135 °C |
| Catalogue source: | Gates Hydraulic 202402, PDF page 30 |
What to send with your enquiry
- Part number and quantity
- Machine serial number — shared privately
- Hose-tag and layline photographs
- End connections or a dimensioned drawing
- Delivery destination
RHPL is an independent manufacturer. OEM names and part numbers are used for identification and cross-reference only. Product compatibility is subject to technical confirmation. Third-party trademarks belong to their respective owners.
